Aluminium Solar Panel Mounting Rails—Custom Aluminium Profiles

Item	Specification
Material	6005-T5 aluminium alloy
Surface Treatment	Anodized ≥12 µm (optional mill finish)
Standard Length	2.0 m / 3.0 m / 4.2 m / 6.0 m (cut-to-length)
Cross-Section	40 × 40 mm (light) / 40 × 50 mm (heavy)
Wall Thickness	2.0 mm – 2.5 mm
Tensile Strength	≥ 160 MPa
Yield Strength	≥ 110 MPa
Elongation	≥ 8 %
Slot Spacing	40 mm center-to-center
Temperature Range	–40 °C to +85 °C
Certification	ISO 9001, ISO 14001, CE, TÜV Rheinland

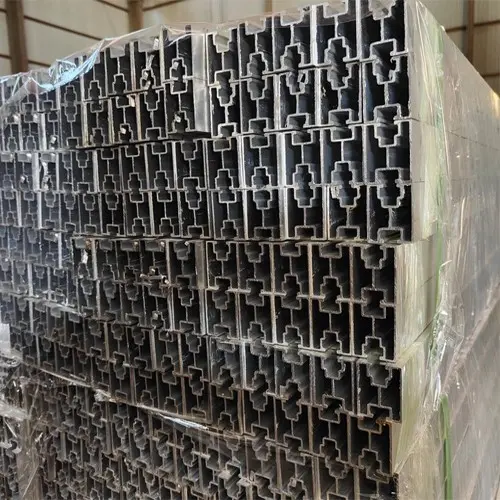

Packaging	Provide packaging according to your needs

Premium Aluminum Fence Panels for Modern Homes

Product Introduction

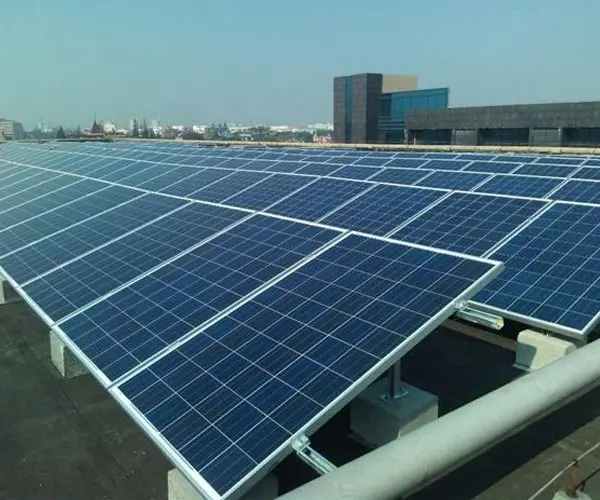

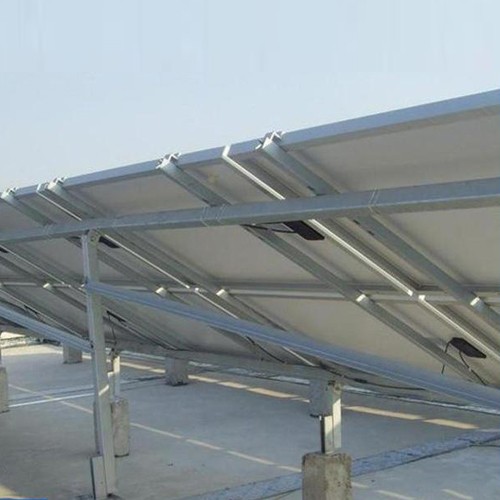

Our aluminium solar panel mounting rails are precision-engineered structural members fabricated from 6005-T5 extruded aluminium profiles. Designed for both residential and utility-scale PV systems, these rails deliver superior corrosion resistance, light weight, and high mechanical strength. Pre-assembled slots and captive nuts enable rapid module alignment, reducing installation time by up to 30 %. The anodized surface (≥12 µm) ensures 25-year outdoor durability under IEC 61215 conditions. Compatible with all major clamping systems, the rails accommodate framed and frameless modules from 30 mm to 50 mm in thickness, making them the go-to choice for solar EPCs and installers worldwide.

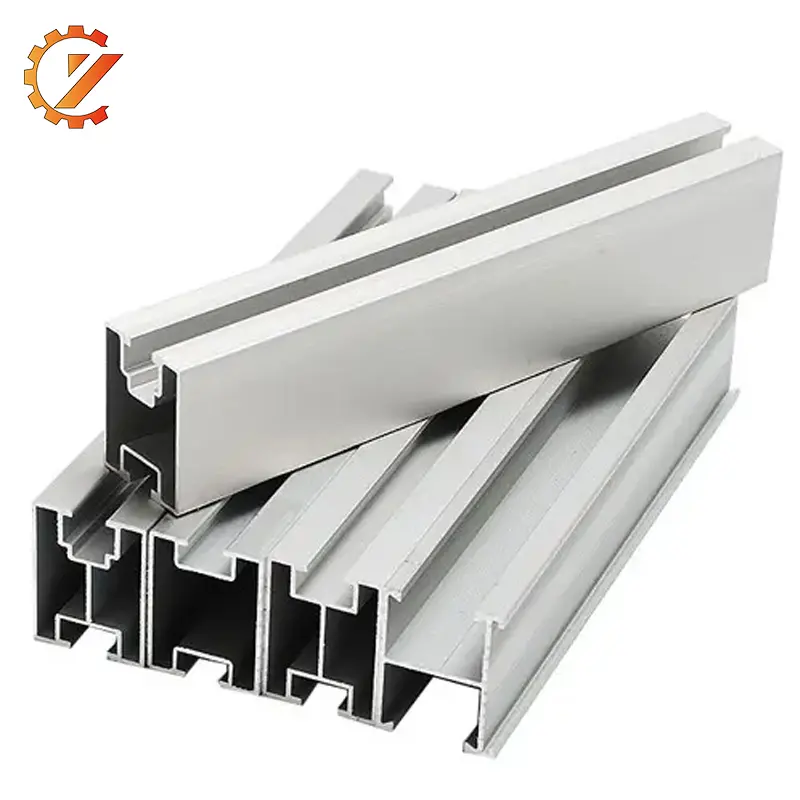

Material Excellence: 6005-T5 aluminium alloy for optimal strength-to-weight ratio

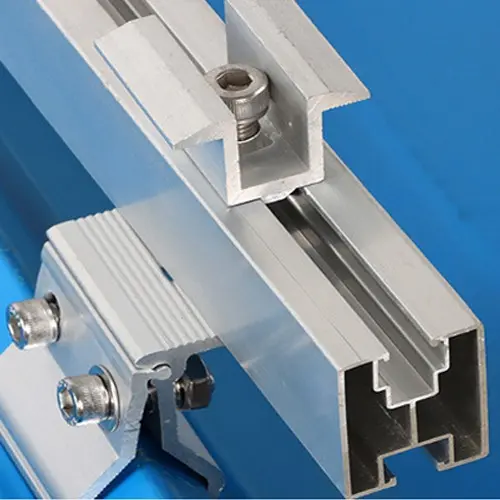

Fast Installation: Pre-slotted design with captive nuts reduces labor by 30 %

Longevity:

≥12 µm anodizing ensures 25-year corrosion resistance

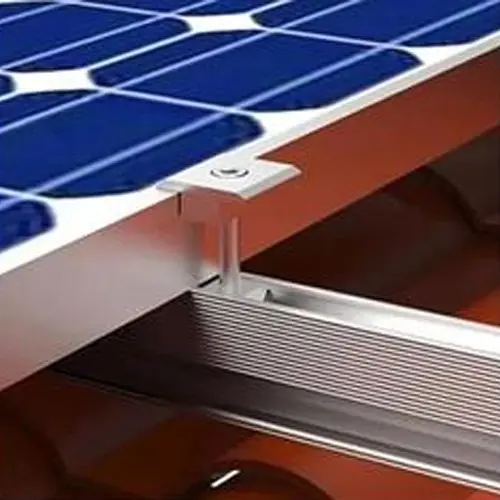

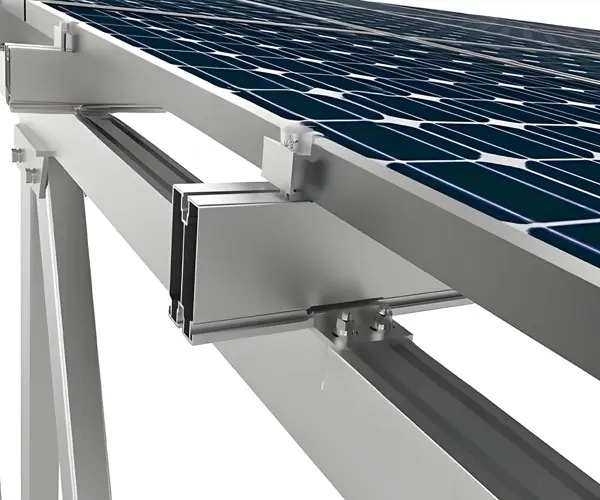

Versatility: Compatible with framed & frameless modules 30–50 mm thick

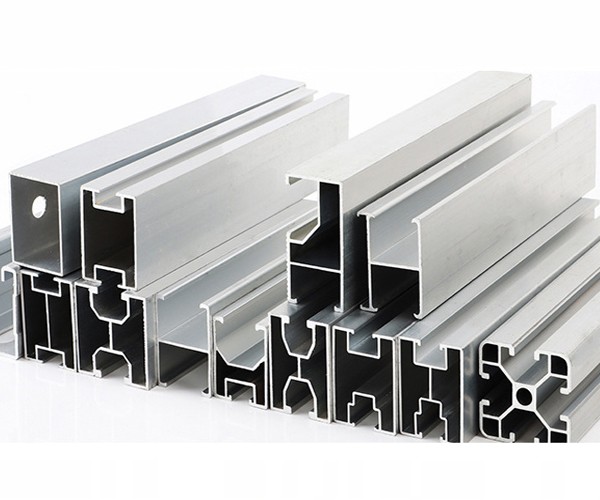

Scalability: Light (40×40 mm) and heavy (40×50 mm) sections for any project size
