Aluminum Ceiling

Custom Aluminum Honeycomb Panels: Weather-Resistant for Exterior Cladding

Parameter	Custom Range
Skin Alloy	3003-H24, 5052-H32, 6061-T6
Skin Thickness	0.5 – 3.0 mm
Core Height (Overall Thickness)	6 – 200 mm
Honeycomb Cell Size	3, 4, 6, 8, 10, 12 mm
Max Panel Size	2 000 × 7 000 mm (single piece)
Flatness	≤0.5 mm / 1 000 mm

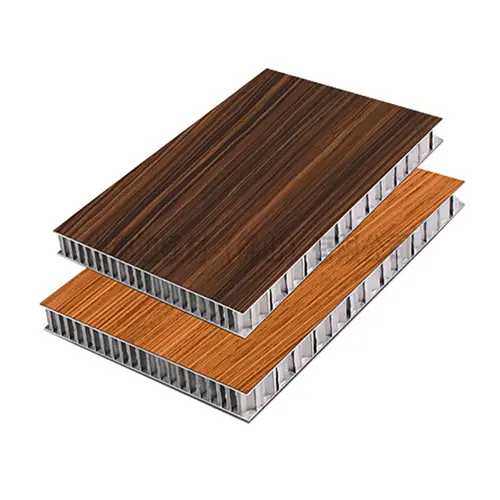

Surface Finish	Mill, anodized ≥12 µm, powder-coat 60–120 µm, PVDF, wood-grain
Color	Any RAL or custom metallic
Fire Rating	EN 13501-1 A2-s1,d0
Edge Close-out	Folded, extruded, tongue-and-groove, rebated
Secondary Machining	CNC routing, drilling, tapping, chamfers
Packaging	Provide packaging according to your needs

Premium Aluminum Fence Panels for Modern Homes

Product Introduction

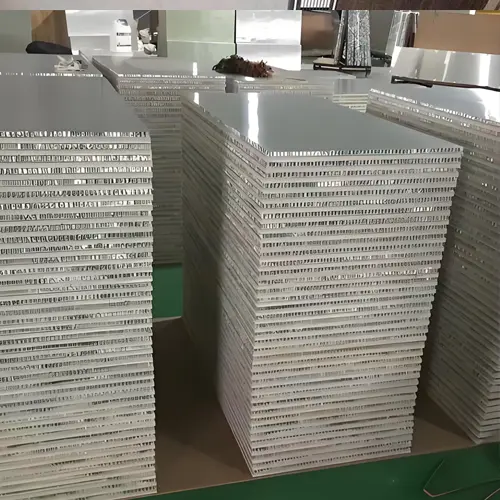

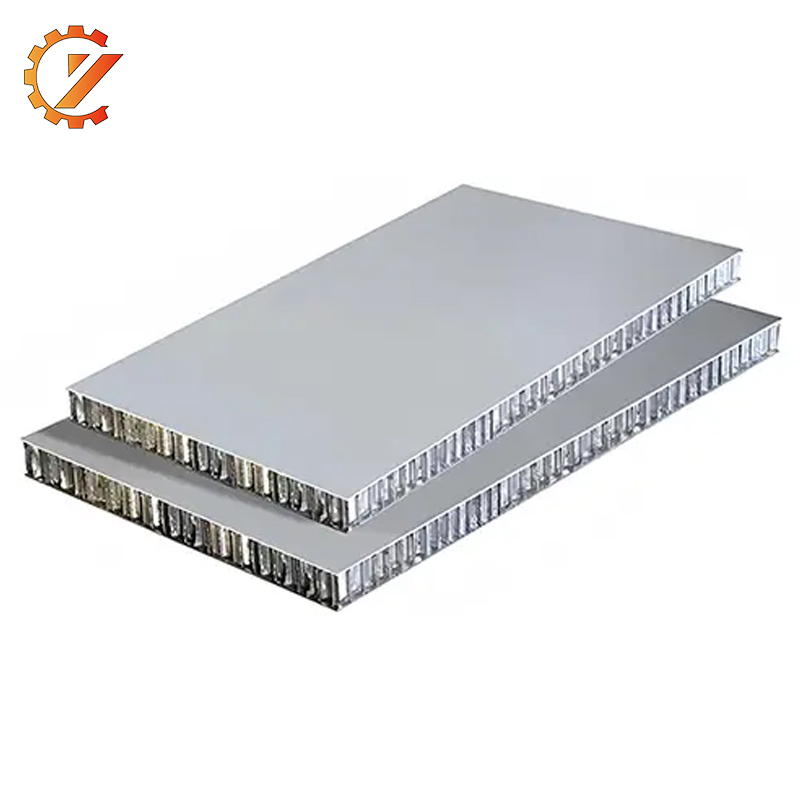

Our Aluminum Honeycomb Panel program is built around pure customization. Every panel is engineered to order: you specify the aluminum skin alloy & thickness, honeycomb core height & cell size, overall dimensions up to 2 000 × 7 000 mm, and any surface finish—mill, anodized, powder-coat, PVDF or wood-grain.

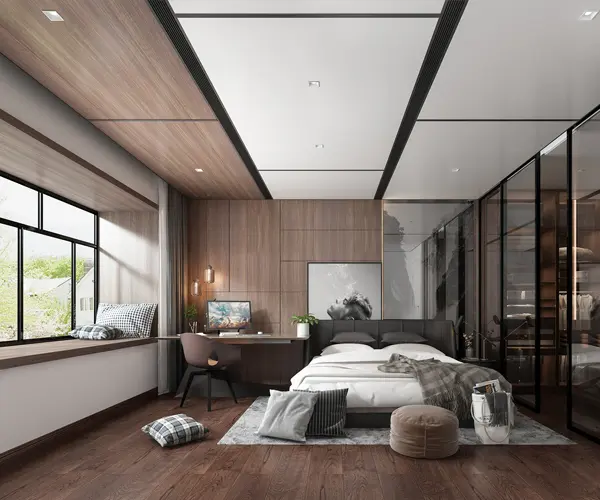

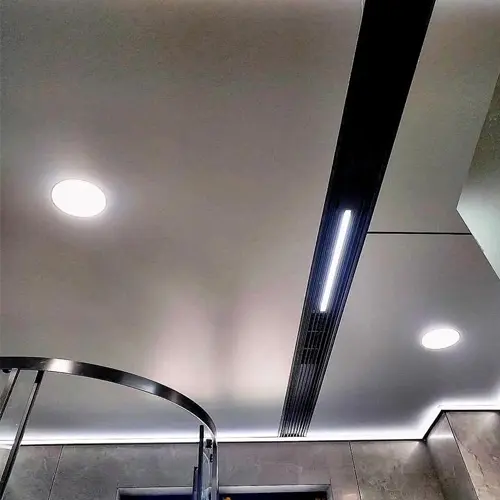

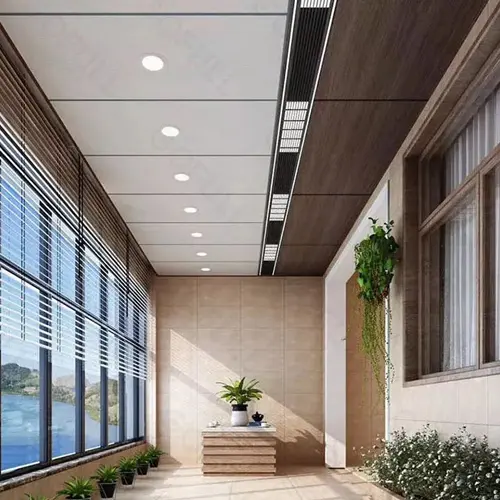

Typical uses include curtain walls, ceilings, furniture, transport floors, and clean-room partitions. Edge profiles, tongue-and-groove joints, perforations and concealed fastenings are all available on demand. Each batch is flatness-verified (≤0.5 mm per 1 000 mm), Class A fire-rated, and shipped in export-grade plywood crates within 7–10 days.

Key Advantages (Bullet Points)

Exceptional strength-to-weight ratio:

Lightweight structure with high rigidity, providing robust load-bearing capacity while reducing overall weight in applications like architecture and transportation.

Superior insulation performance:

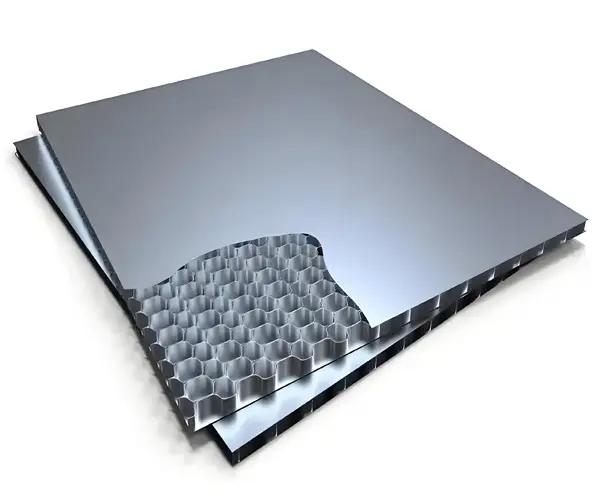

Honeycomb core design offers excellent thermal and sound insulation, enhancing energy efficiency and comfort in buildings or vehicles.

Strong durability & corrosion resistance:

Aluminum materials resist rust and wear; the integrated structure withstands environmental stress, ensuring long service life.

Versatile customization: Easily cut, shaped, or coated to fit diverse designs—ideal for decorative panels, signage, or industrial partitions.

Eco-friendly & cost-effective: Recyclable aluminum components align with sustainability goals; low maintenance and long lifespan reduce total ownership costs.
